Smart Cooling - How it works
Intelligent adiabatic Smart Cooling™ system combines an adiabatic evaporative pre-cooling process and condenser protection with mechanical air filtration. The intelligent adiabatic Smart Cooling™ system is mounted externally in front of the condensers of the cooling equipment. Smart Cooling™ initiates the adiabatic process even before the mechanical cooling kicks in and the equipment receives a temperature-reducing fine mist of processed water that reduces the temperature of condensation within the cooling circuit. The temperature of inlet air into the adiabatic Smart Cooling™ system drops substantially during the process, typically in the range of 10°C to 20°C, providing higher chiller efficiency by up to 37%.
New generation intelligent adiabatic chiller boosting system with total condenser protection





Condensers must be protected from corrosion, mineral deposit (limescale) and other harmful elements. Smart Cooling™ uses a patented protective membrane (pre-filter) that safeguards condensers against calcium and mineral deposits, corrosion, dust and sun rays. The membrane prevents water mist from coming into direct contact with the condenser. The self-cleaning membrane captures water mist, direct sunlight and dirt. The membrane’s special cell material does not create additional resistance to airflow into the condenser.
The intelligent adiabatic pre-cooling system concept behind Smart Cooling™ is based on adiabatic evaporative cooling: the delicate process of spraying treated water using a fine water mist to cool intake air flowing into the condensers in advance without damaging or incurring efficiency loss on the condensers.
Water purification also plays a significant role, therefore Smart Cooling™ has a four-step water treatment module to safeguard condensers from dust, calcium and mineral deposits (limescale), algae and bacteria (including Legionella). The pressure in the adiabatic system ranges from 70 to 140 bar and provides highly effective water spraying and evaporation, hence a significant reduction of temperature from dry to wet bulb.
The new generation intelligent PRO 1 Controller and its dedicated software provide the brainpower to the Smart Cooling™ system, ensuring that the operation of the adiabatic system is maximized while maintaining minimal water consumption. The controller analyzes air temperature, air humidity, chiller load and its daily cycle. Based on these finely measured parameters, the PRO 1 automatically alternates operating modes resulting in 100% water evaporation and maximum efficiency.

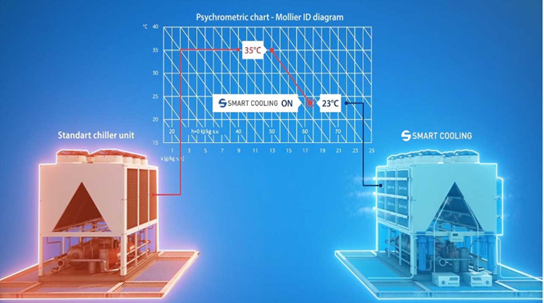

The temperature of incoming air flowing into the adiabatic Smart Cooling™ system substantially decreases during the adiabatic process, at levels registered between 10 – 20°C.
The lower air temperature produced by the Smart Cooling™ system dramatically increases the cooling capacity of the cooling unit. By allowing the unit to operate with a significantly lower temperature from the very beginning, less electricity is used and tremendous gains in efficiency and cost-reduction are achieved.

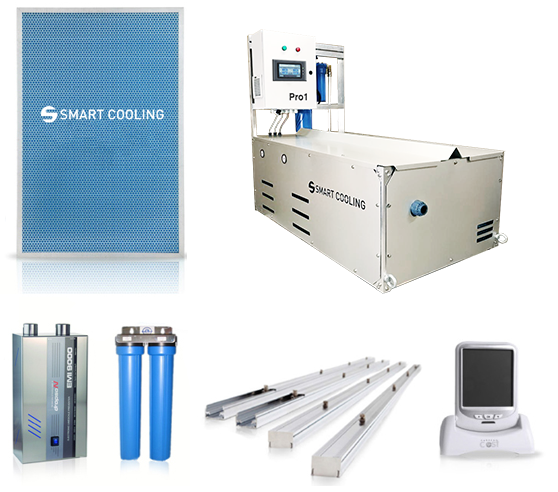

Our system is modular and applicable to all types of dry coolers and chillers. All system components are designed so that the Smart Cooling™ system can be installed quickly, easily and with the greatest reliability and longevity in the market.
